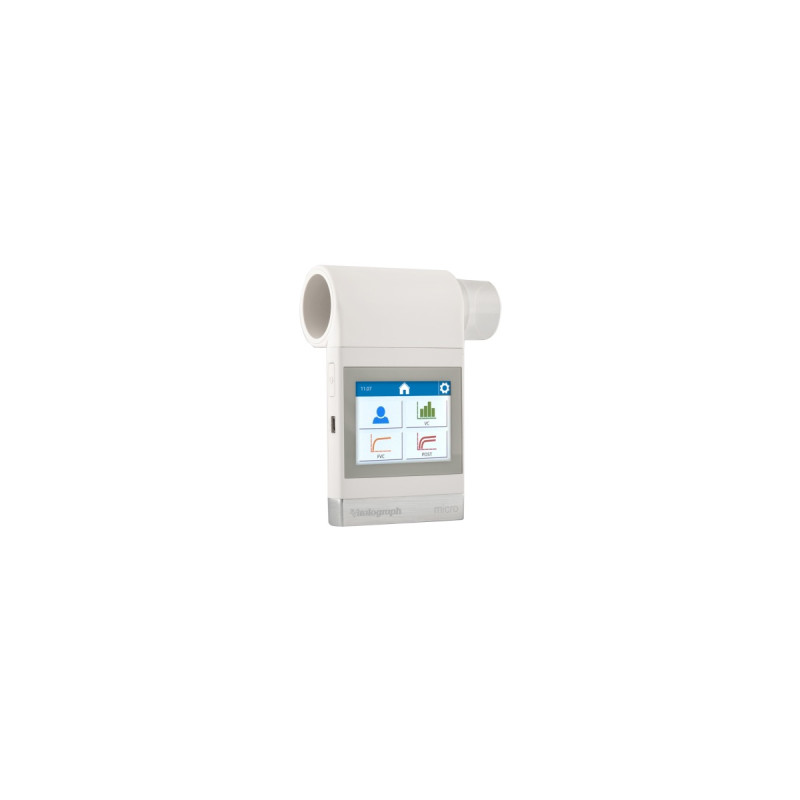

The Vitalograph Micro 3 is a portable, precise, and ultra-compact diagnostic spirometer designed to perform reliable respiratory tests in medical offices, clinics, or home visits. Lightweight, robust, and equipped with a 2.8-inch color touchscreen, it provides instant visualization of curves and key parameters. With USB/Bluetooth connectivity and integration with the Device Studio software, it enables professional monitoring, easy data archiving, and customized PDF report generation.

Main Features

• Target users: Healthcare professionals

• Device type: Class IIa medical device

• Available tests: FVC, SVC, reversibility test

• Display: 2.8” capacitive color touchscreen

• Hygiene: Compatible with BVF™ filters (> 99.999% filtration)

• Connectivity: USB + Bluetooth, compatible with Device Studio (included)

• Memory: Up to 325 test subjects

• Accuracy: Compliant with ATS/ERS 2019

• Design: Detachable expiratory head, stainless steel base, ergonomic casing

• Warranty: 1 year

Technical Specifications

Dimensions:

• Length: 16 cm

• Width: 7.5 cm

Weight:

• 275 g

Measuring element:

• Fleisch-type pneumotachograph

• Volume detection: 100 Hz flow integration

Ranges and accuracy:

• Maximum volume: 10 L

• Volume accuracy: ± 2.5%

• Flow: from ±1.2 L/min to ±960 L/min

Power supply:

• 4 AAA alkaline batteries (IEC60086)

• USB 5 V DC

Software and export:

• Compatibility: Device Studio

• Custom PDF export

Materials and hygiene:

• Removable expiratory head

• Compatible with Vitalograph BVF™ single-use filters

Safety and standards:

• Standards: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009

• Home use: EN 60601-1-11

• Applied part type: BF

The Vitalograph Micro 3 combines clinical-grade accuracy, portability, and enhanced hygiene for professionals seeking a reliable and easy-to-use spirometer. Compliant with international ATS/ERS 2019 standards and equipped with advanced connectivity, it integrates seamlessly into modern medical practices, including telemedicine. Its compact and robust design makes it an ideal tool for respiratory diagnostics, pulmonary disease monitoring, and mobile testing.
