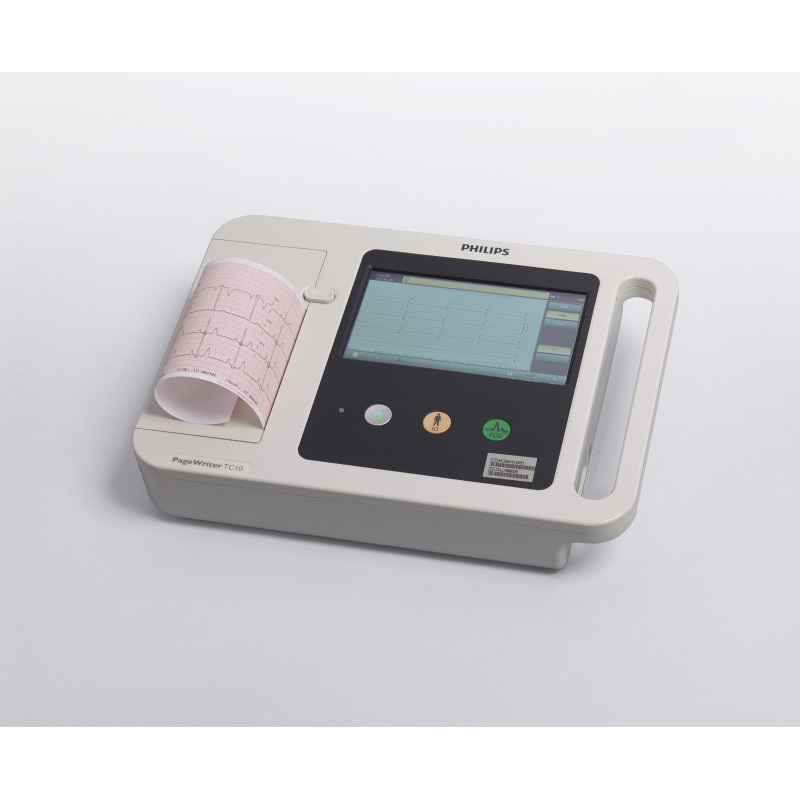

The Philips PageWriter TC10 is a portable 12-lead electrocardiograph designed for fast, intuitive, and reliable use in any clinical setting. It operates in just three steps, thanks to the Philips DXL ECG algorithm, which enhances diagnostic accuracy and automatically detects anomalies (such as STEMI or lead reversal).

The 7-inch colour touchscreen (800x400) ensures smooth navigation, while the compact design (2.5 kg with handle) makes it ideal for hospital wards and emergency units. The TC10 also provides comprehensive connectivity: DICOM, HL7, XML, Wi-Fi, LAN, barcode reader, magnetic card reader, and a USB port for external ECG data storage via USB key.

The stand is sold separately.

Key features

• 12-lead ECG with simultaneous acquisition

• Three-step operation for easy use

• DXL ECG interpretation algorithm (600 diagnostics)

• 7” colour touchscreen – 800x400 px

• High-resolution thermal printer 6 channel

• Connectivity: DICOM, HL7, XML, Wi-Fi, LAN

• External storage via USB port (USB key not included)

• Lightweight – 2.5 kg with battery

• Ergonomic design with integrated handle

• 1D/2D barcode scanner and magnetic card reader

• 10-hour battery life – full charge in 4 h

• Stand available separately

Technical specifications

• Product type: electrocardiograph (ECG)

• Recommended use: cardiac monitoring

• Features: compact, portable, supports XML, HL7 and DICOM

• Dimensions (H x W x D): 65 x 338 x 240 mm

• Weight: 2.5 kg with battery

• Display: 7” touchscreen – 800 x 400 px – 64,000 colours

• Internal memory: 200 ECGs

• External storage: via USB port (left side – up to 200 ECGs)

• Battery: lithium-ion 11.1 V – 10 h autonomy – 4 h charging

• Connectivity:

  • 1 USB port (external storage)

  • 1 LAN port

  • 1 Wi-Fi module (a, b, g)

  • 1 analogue ECG signal port

  • 1 barcode/magnetic reader port

  • 1 patient interface connector

  • 1 modem port

The Philips PageWriter TC10 provides a complete, portable, and high-performance ECG solution that integrates easily into modern hospital environments. It combines ergonomics, advanced analysis, and connectivity with an intuitive user experience.
The stand is sold separately.
