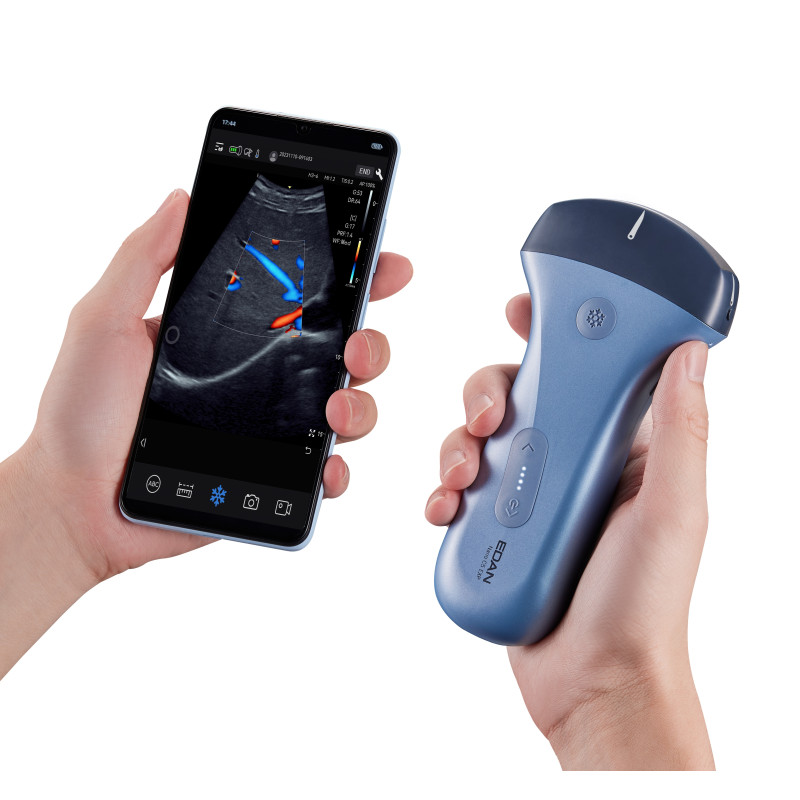

The Edan Nano Portable Color Ultrasound is a compact and high-performance medical device designed to offer great flexibility for healthcare professionals. Thanks to its ultra-portable design, extended battery life, and wireless connectivity, this ultrasound allows for quick and accurate exams, whether in a clinic, hospital, or on the move. Two versions are available to meet the specific needs of practitioners:

Convex Model (EDA516): Ideal for abdominal, obstetric, thoracic, and urological imaging
Linear Model (EDA517): Optimized for vascular, musculoskeletal, and pediatric exams

Main Features

✔ High-resolution imaging: SynSight Zone Sonography and Tissue Adaptive Imaging (TAI) technology for sharp and precise images
✔ Advanced imaging modes: B, C, M, PW with automatic optimization
✔ Ultra-portable: Compact size (16.1 x 6.4 x 2.9 cm) and lightweight (215 g)
✔ Wireless or wired connection: Compatible with Android tablet or smartphone via the Nano app
✔ Intuitive interface: Customizable with presets and voice assistant
✔ Smart features: Auto Trace, Auto B-Line, Fast/eFast/Blue navigation protocols
✔ Durable and hygienic design: IP67 waterproof for easy disinfection
✔ Extended battery life: Up to 5 hours of use with a fast charge in 2.5 hours

Differences Between the Two Models

Edan Nano Convex (EDA516)

• Convex probe (64 channels, 128 elements)

• Frequency: 2 - 5 MHz

• Applications: Abdominal, obstetric, thoracic, urological imaging

Edan Nano Linear (EDA517)

• Linear probe (64 channels, 192 elements)

• Frequency: 4 - 12 MHz

• Applications: Vascular, musculoskeletal, pediatric, small organ imaging

Technical Specifications

• Dimensions: 16.1 cm (L) x 6.4 cm (W) x 2.9 cm (H)

• Weight: 215 g

• Frequency Ranges:

  • Convex: 2 - 5 MHz

  • Linear: 4 - 12 MHz

• Imaging Modes: B, C, M, PW

• Battery Life: 5 hours (quick charge in 2.5 hours)

• Connectivity: Wireless / wired via Nano Android app

• Water Resistance: IP67

• Operating Temperature: 0 - 40°C

• Certifications: CE 2017/745, Notified Body 0123

• Medical Class: IIa (regulated medical device)

• Warranty: 3 years

The Edan Nano Portable Color Ultrasound revolutionizes mobile medical imaging with its compact size, exceptional image quality, and ease of use. Whether for abdominal, vascular, musculoskeletal, or obstetric exams, its two versions tailored to the specific needs of practitioners guarantee optimal flexibility.
