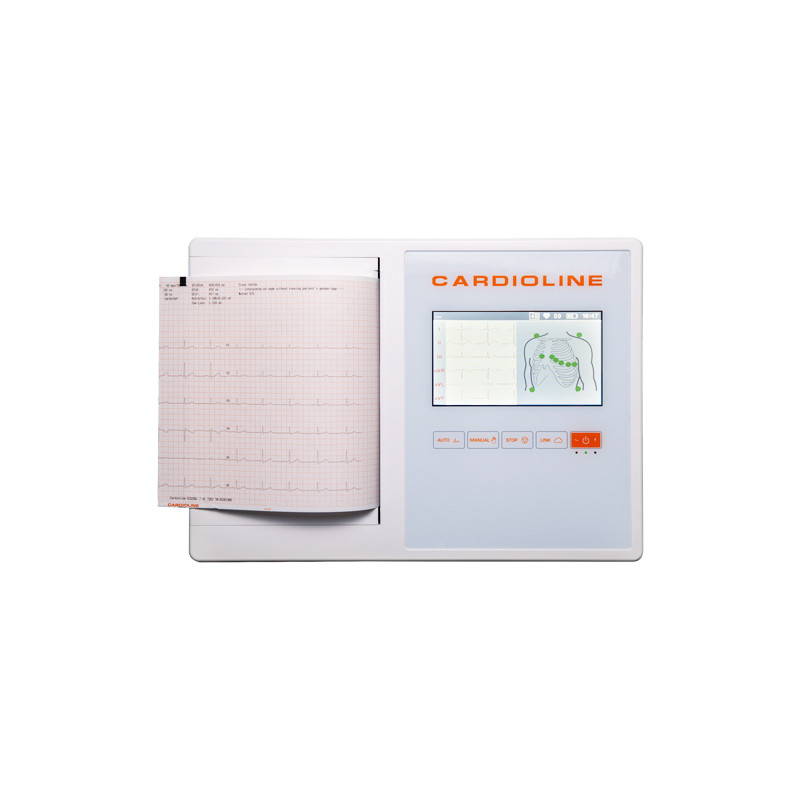

Equipped with the Glasgow algorithm, the Cardioline 200L electrocardiogram is a diagnostic device that displays, records and prints ECG traces for patients (adults and children).
Thanks to its 7-inch colour touch screen, the device is easy to use.

Special features of the Cardioline 200L ECG  :

- 12 branches (I, II, III, aVR-L-F, V1-6)

- Several operating modes (automatic, manual and emergency for rapid commissioning in critical situations).

- ECG User's Guide on exam preparation, electrode placement, plotting and signal quality control, acquisition, interpretation, printing and archiving of ECG exams.

- Data export via USB to a PC, USB stick or with the ECG Easy app software in SCP and PDF format (optional).
- Storage of ECG files on the device.
- 7 inch (180mm) colour touch screen.
- Capable of recording up to 50 ECGs.
- Compact and lightweight for mobile use.
- Glasgow Algorithm.

Technical characteristics :

- CMRR greater than 100dB
- DC input impedance 100MΩ
- 16-bit A/D converter, 32,000 samples/second/channel
- Frontal sampling frequency: 32,000 samples/second/channel
- Sampling frequency for signal analysis: 500 samples/second/channel
- A/D conversion: 16 bit
- Resolution: 5µV/LSB
- Dynamic value scale: +/- 325 mV
- Bandwidth : Performance equivalent to 0.05-150 Hz
- Dimensions: 413 x 295 x 80 mm
- Weight : 4.17 kg
- Power supply: 220v mains / battery

Supplied with :

- 10 universal adapters (snap/tab) 4mm
- 60 disposable ECG tab electrodes
- 1 IEC patient cable, 10 strands, 4mm plug
- 1 EU-compliant power cable
- 1 ream of ECG paper 210 x 295 mm Z-fold
- Glasgow interpretation algorithm
- 1 user manual

> WARRANTY : 2 YEARS
